Marka: | HAIKON |
Stok : | STOK : Var 53 ürün |
Ürün Kodu: | DS-7208HQHI-K2 Turbo HD DVR (612) |

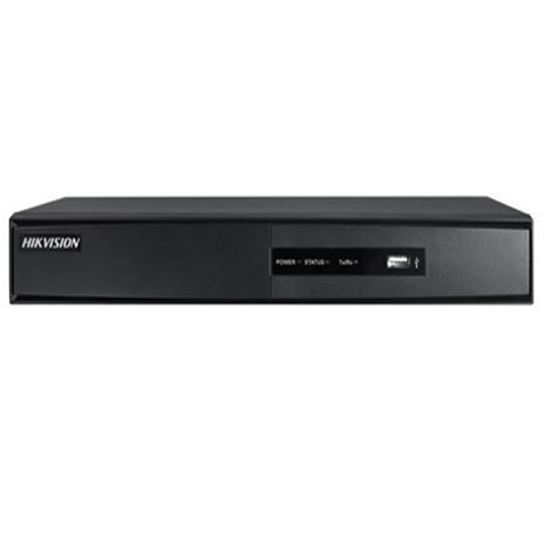

DS-7208HQHI-K2 Turbo HD DVR
370.00 Dolar 187.00 Dolar
Audio Input: | 1-ch | |
Video Compression: | H.265+/H.265/H.264+/H.264 | |
Analog and HD-TVI video input: | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
Supported camera types: | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input |
|
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
Audio Compression: | G.711u | |
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
Video/Audio Output | ||
---|---|---|
CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 | |
HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
Video Bit Rate: | 32 Kbps-6 Mbps | |
Stream Type: | Video/Video&Audio | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
Audio Bit Rate: | 64kbps | |
Dual Stream: | Support | |
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF | |
Synchronous Playback: | 8-ch |
